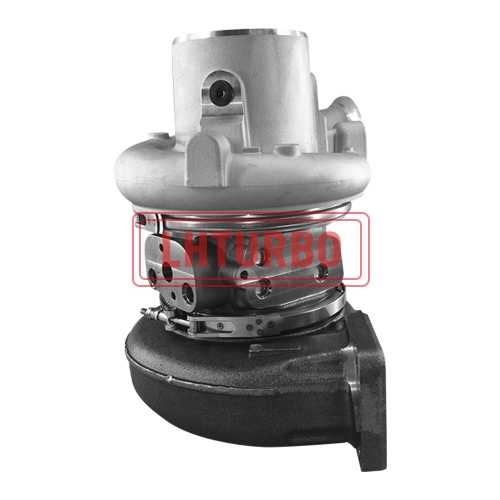

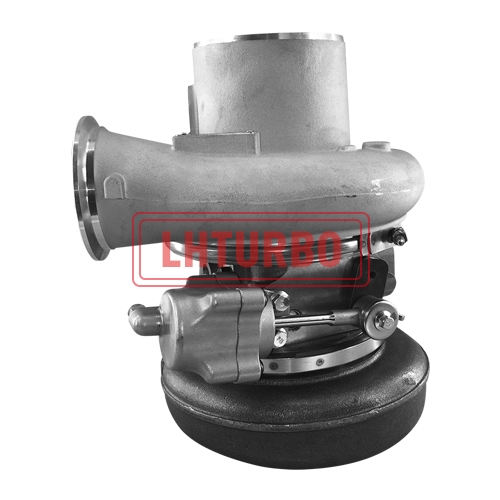

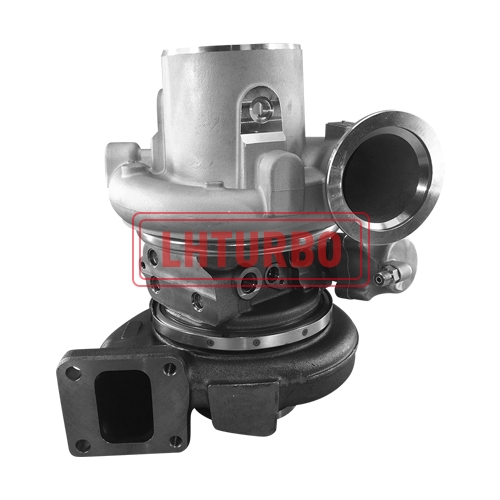

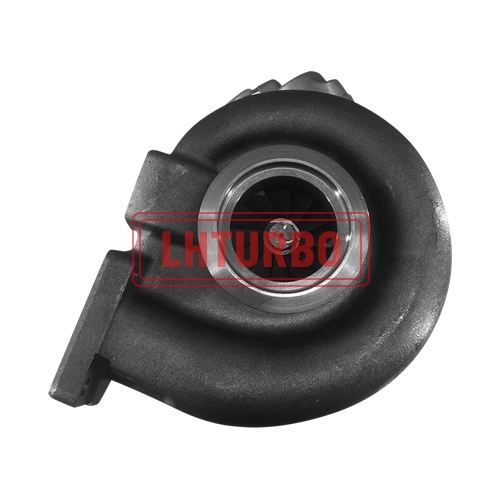

HE551V 2881994 Turbo For Cummins ISX
Product DescriptionSKU# PJ2008
Engine: Cummins ISX, QSX15
Turbo Model: HE551V
Turbine Housing AR: VGT
Reference Part Number: 4955306RX, 4045753RX, 4043225, 2881993, 2881994,2881994, 4089551, 4055306, 2842412, 2843888, 4041090, 4043215, 2881993, etc.
No core charge, Brand New.
Product Specification:
| Part Number |
4043225 |
| Previous Part Number |
4043226, 2881993, 3768263 |
| OE number |
4955305 |
| Description |
Various |
| Manufacturer Part Number |
4045752 |
| CHRA |
N/A |
| Turbo Model |
HE551V |
| Holset Assembly |
4045752, 2842411, 2843886, 3768263 |
| Cummins | 4043225, 4955305, 2843887, 2881993, 3768267 |
| Engine | ISX04 X2/X3, Signature ISX QSX15 |
| Engine Manufacturer | Cummins |
| Angle α (compressor housing) | 290 |
| Angle β (turbine housing) | 140 |
| Turbine Housing AR | VGT |
| Replaced by | 4043214 |
Applications
2007-09 Cummins Signature with ISX QSX15 Engine
Packing way (shipping info)
G.W.: 71.00lbs
BOX SIZE: 14.5*13.7*16.5in
